Eccentric Vibrator Circular Motion Screen 7000*2600mm Dimension Mn16 Mesh

Name: Eccentric Vibrator Circular Motion Screen 70002600mm Dimension Mn16 Mesh
Brand: MZZG
Price: 1 USD

Place of Origin : Henan, China

Brand Name : MZZG

MOQ : 1 set

Price : Negotiation

Packaging Details : Depond on product

Delivery Time : 35 work days

Payment Terms : L/C, T/T

Supply Ability : 10 set 15 set per month

Model Number : 3YK2670

Installation : CAD Drawing

Application : Ore

Product name : Eccentric Vibrator Circular Motion Screen 7000*2600mm Dimension Mn16 Mesh

Dimension(L*W) : 7000*2600mm

Layer(s) : 3 Layers

Screen Mesh : Mn16

Motor : 3 Phase

Function : Screening/separation/sorting/sieving

Contact Now

Eccentric Vibrator Circular Motion Screen 7000*2600mm Dimension Mn16 Mesh

Working principle

The trajectory of the circular vibrating screen is circular or elliptical. The circular vibrating screen uses an inertial shaker to generate vibration. The vibration source is generally a motor-driven shaker. The circular vibrating screen is a single-axis vibrator.The main shaft fixed on the screen box is driven to rotate at a high speed by the motor.The eccentric body mounted on the main shaft rotates accordingly, generating a centrifugal inertial force, so that the screen box that can freely vibrate has an approximately circular shape. The trajectory of vibration. After the sieve machine is started, the sieve shaker drives the vibrating sieve box to perform the directional jumping movement. During this time, the material smaller than the screen surface diameter falls to the lower layer through the screen hole and becomes the under screen. The material larger than the screen surface diameter is continuously jumped. It is discharged from the discharge port after transportation.

Performance Features

1. High production efficiency and good screening effect. 2. Strong excitation force and low vibration noise. 3. Firm structure, simple operation and adjustment, convenient maintenance.

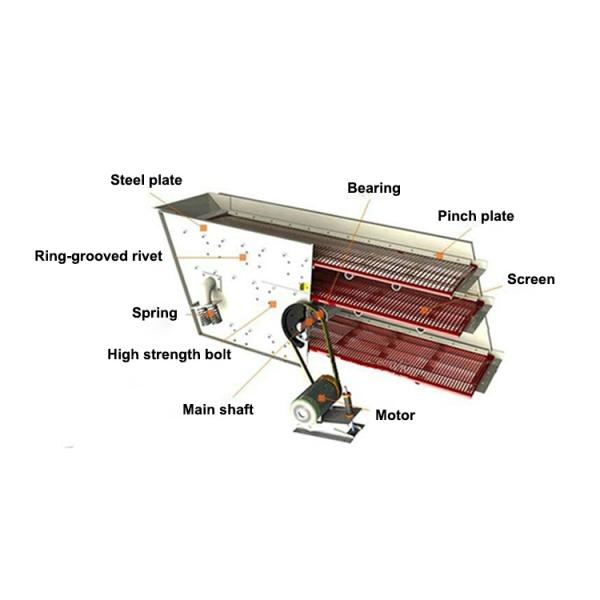

Structure

Eccentric Vibrator Circular Motion Screen 7000*2600mm Dimension Mn16 Mesh

Tech Specifications

Application

Especially suitable for building materials, mining, stone, cement, chemical and electric power and other industrial sectors, screening of crushed medium and fine materials.
